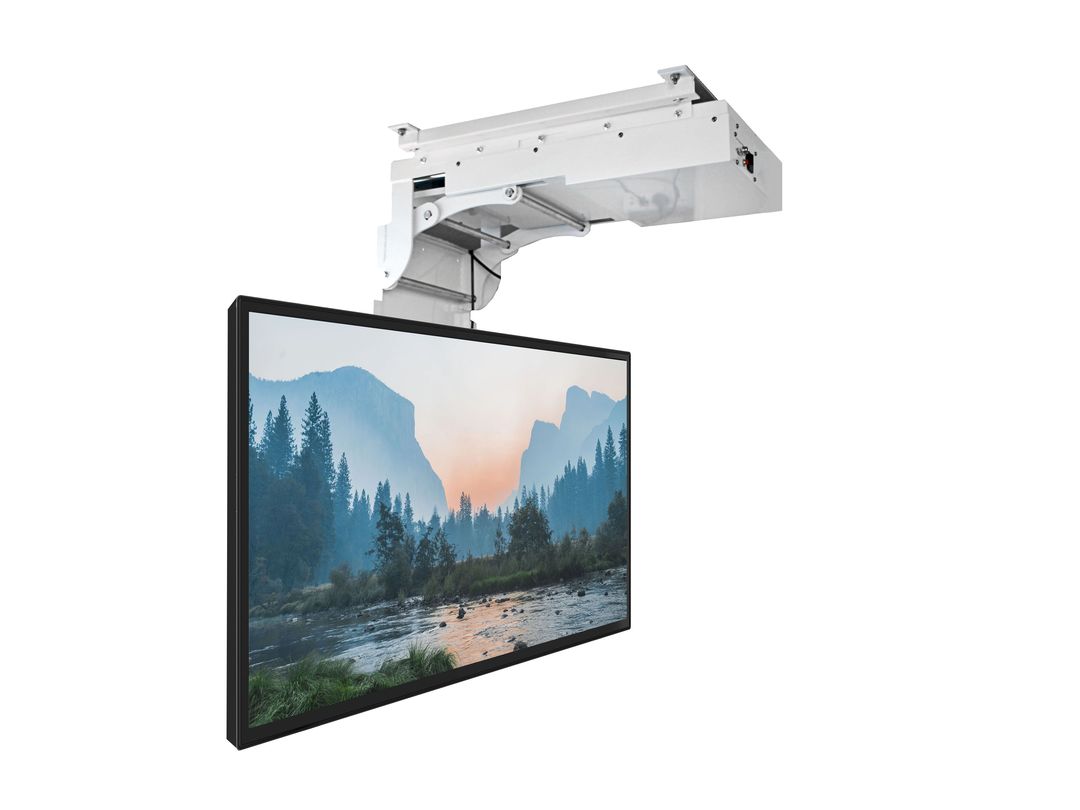

M Motorized Ceiling Mount Inverted is a hidden motorized ceilingmount optimized for displays between 32 and 70” size. ideal mount for your TV installation when in need of the. Often placed in bedrooms, kitchens, offices, schools or stores it can fold your screen down or up -108° – 0°. This under the cabinet/ ceiling mount includes a locking system to keep the screen in position and is a very practical solution supporting screens both smaller and larger, 32″ to 70″.

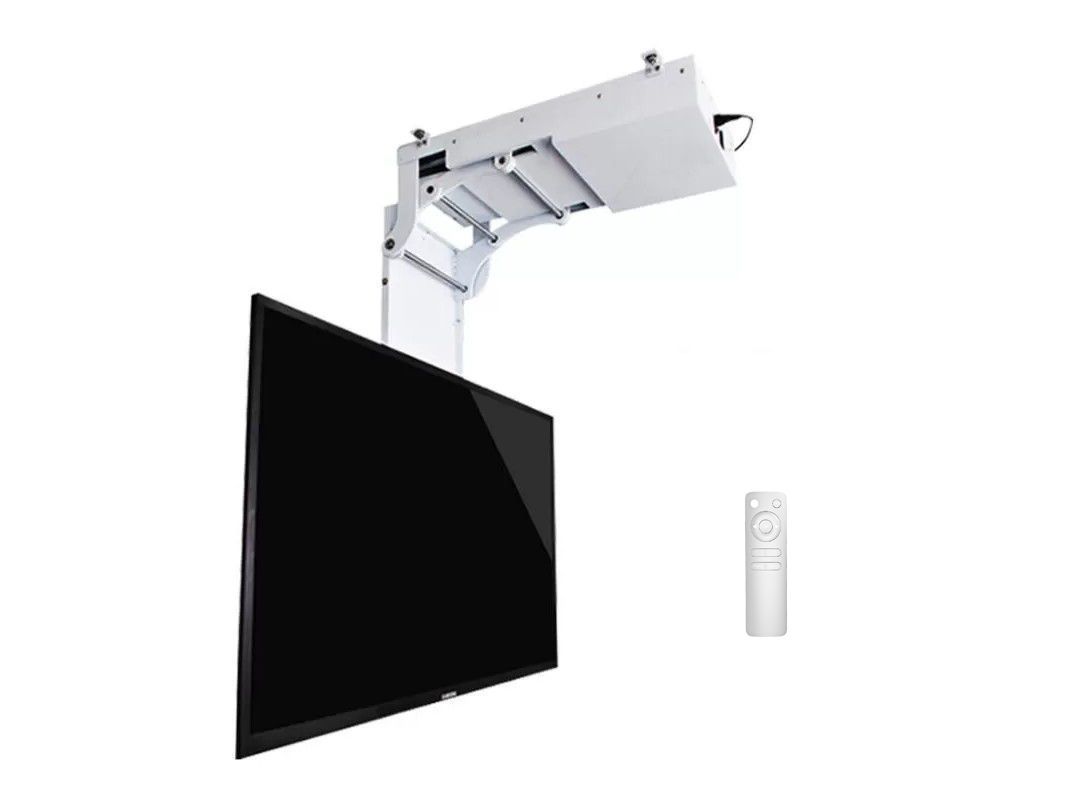

The M Motorized Ceiling Mount Inverted uses a rapid motorized flip down transition technique with little noise. Use the included remote control to fold down or flip up the TV. Multiple ceiling mounts can be controlled with one remote control, if the sensors of the ceilingmounts are close.
Maximum height of screen is 393mm, measured from the upper VESA hole to ceiling,
Highlights
- The ideal solution for a ceiling motorized flip down of your TV
- Supporting 32″ up to 70″ flat panel displays
- Rapid motorized transition -108° – +0° up and down folded position
- Up and down, up 980mm down 770mm
- Max screen weight capacity: 50 kg
- Remote control included
- Remote control, multi-style operation, remote control / remote control / central control
SPECIFICATION | |
M Motorized Ceiling Mount Inverted | |
For screen size: | 32-70″ |
VESA standard: | 300×300, 400×400, 600×600 mm |
Article No: | 7 350 073 739 585 |
Colour: | White |
Max load: | 50 kg |
Tilt angle: | 0-108° |
Certification: | CE |
Power: | 220V 50/60Hz 4.0uF 0.65A 1300/1600r/min (open-close time 70 sec) Cable length: 2m |
Remote control: | RF intelligent remote control operation included. Batteries not included RS-232 interface availiable |
Weight: | 40 kg |
Size in mm: | 832x360x307 mm |
Warranty: | 1 year |
Retail Package Specification | |
Package Parcels: | 1 pcs |
Package Measurements: | 58 x 42 x 90 cm |
Package Weight: | 50.00 kg |
